Corte
Proteja suas mangas e seus operadores enquanto obtém cortes/juntas limpos em suas placas flexográficas e fitas com nossa linha de sistemas de corte.
Corrugated Pre-Print Mounting Systems

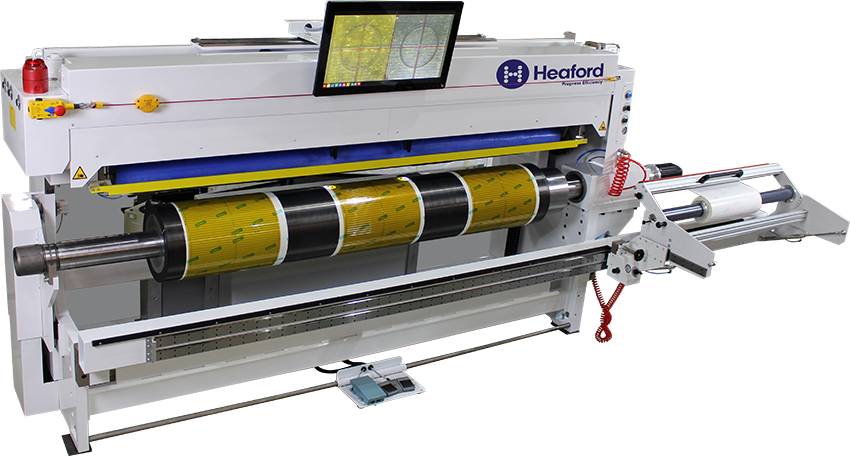

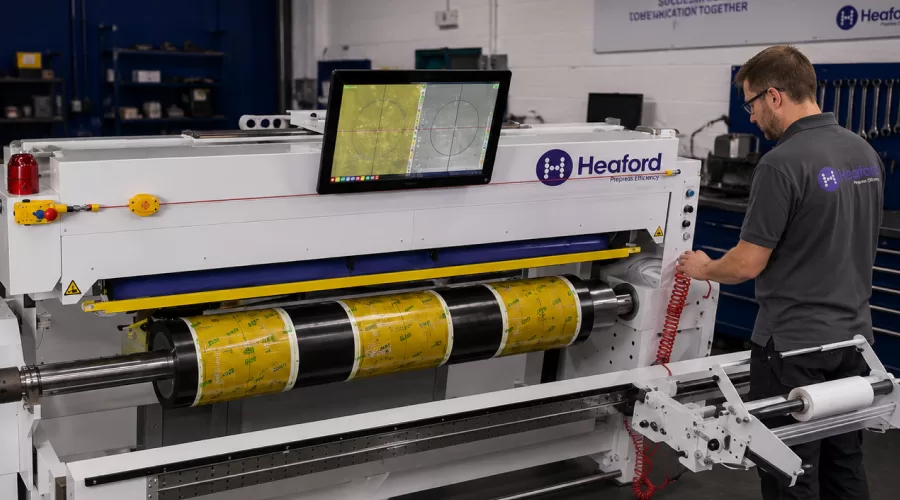

WW 2CS Range
A range of sleeve or cylinder mounters with servo-motorised cameras and a mandrel for fast and accurate mounting.
Características;
- Facilita alta precisão de montagem
- Fácil de usar
- Interface intuitiva
- Proofing versions are also available
- Larguras de banda de até 3.000 mm (118”)
- Repita de 500mm(20“) a 2500mm(98“)
Advanced Features for Corrugated Pre-Print Mounting
The Heaford WW 2CS range combines servo-driven mounting technology, intuitive operation and high-accuracy positioning to deliver fast, repeatable corrugated pre-print mounting performance across demanding production environments.
Tape Appliciation
Apply tape faster, more precisely and more consistently with our range of operator friendly tape holders and applicators.
Sleeve Inspection
Damage to sleeves will most often result in a reduction in print quality. Measure, track and predict the condition of your sleeves with our range of TIR and Scanning devices.
Pre Register
Press manufacturers are working tirelessly to reduce start up waste through accurate pre-setting. We have a range of solutions to match your mounter to your press pre-setting system.
Plate Support
A table, powered pneumatically to advance and retract as required. Options to hold the rear and/or front half of the plate during mounting (this avoids the need to protect the rear half of the plate mounting tape on the sleeve with silicone release liner).
Rolo de assentamento
Melhore a eficiência, a consistência e elimine os riscos de bolhas de ar frequentemente associadas ao 'rolamento manual' usando nosso rolo de espuma de silicone. Isto aplica uma pressão uniforme em toda a largura da luva para aplicação de fita e placa.
Código de barras
Configuração mais rápida do trabalho e eliminação de erros do operador na configuração do trabalho com nosso leitor de código de barras e software associado para gerar cartões de trabalho e ler códigos de barras para entrada automática de coordenadas de montagem através da rede da sua empresa.
Verifique a montagem
Ajude os operadores a montar de forma consistente com um sistema de semáforo visual simples com tolerância de montagem definida pelo usuário. Apresentando um sistema de reconhecimento de alvo que funciona em todos os tipos de marcas registradas.
Corrugated Pre-Print Mounter Features & Specifications
Características
The Heaford WW 2CS range has been developed to provide fast, accurate and repeatable corrugated pre-print mounting through advanced servo-motorised camera and mandrel technology. Available for both sleeve and cylinder applications, the system combines intuitive controls with high-precision positioning to support efficient mounting workflows and dependable production performance.
Designed for ease of operation and mounting consistency, the WW 2CS range enables converters to achieve highly accurate plate positioning across demanding corrugated pre-print applications. Proofing versions are also available for converters requiring additional plate verification and workflow control capabilities.
Especificações
The Heaford corrugated pre-print mounting range supports web widths of up to 3000mm (118”) and repeat ranges from 500mm (20”) up to 2500mm (98”), providing flexibility across a wide range of corrugated production requirements.
Built around advanced servo-driven positioning technology, the WW 2CS range delivers accurate and repeatable mounting performance while maintaining an operator-friendly workflow suitable for modern corrugated prepress environments.
Opções
A range of optional accessories and workflow enhancements is available to further optimise the WW 2CS range for specific production requirements. These include barcode scanners, CheckMount systems, front and rear plate support tables, plate and tape cutters and carriage-style tape applicators designed to improve workflow efficiency and mounting accuracy.
Additional options, including plate and tape laydown rollers, QA reporting functionality and TIR sleeve inspection systems, provide enhanced production control, operational flexibility and quality assurance across demanding corrugated pre-print applications.

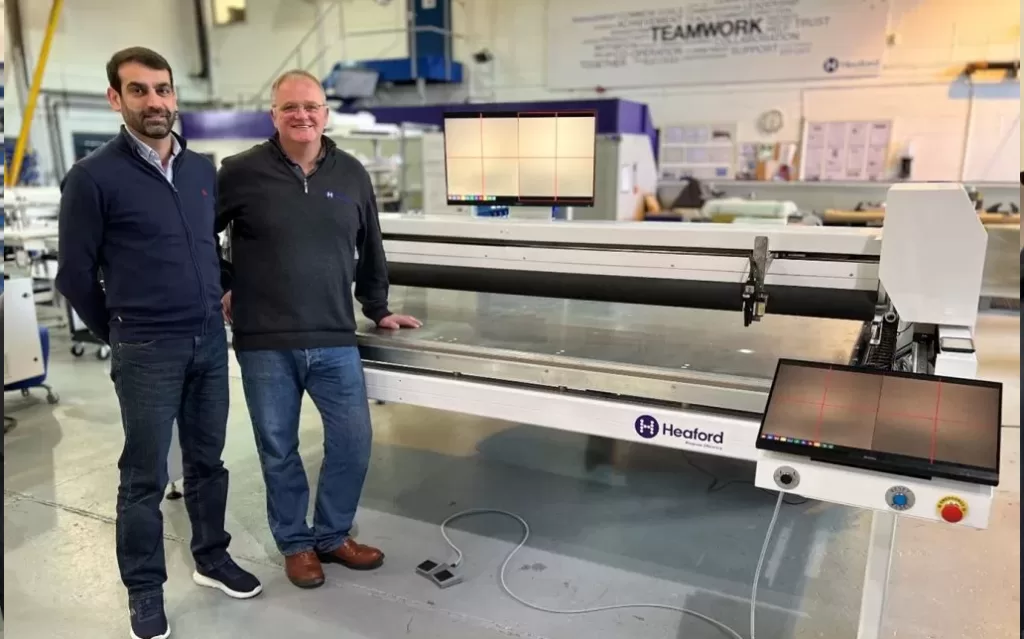

Corrugated Pre-Print Plate Mounting Systems
Fast, Accurate & Repeatable Corrugated Mounting Performance
The Heaford WW 2CS range has been developed to deliver highly accurate corrugated pre-print mounting through advanced servo-driven technology and intuitive operator controls. Designed for modern corrugated production environments, the system helps converters improve workflow efficiency while maintaining dependable mounting precision across every job.
Available for both sleeve and cylinder applications, the WW 2CS range combines high-accuracy positioning, repeatable mounting performance and flexible workflow options to support demanding corrugated prepress operations. Proofing versions are also available for enhanced plate verification and production confidence.
WW 2CS FAQ’s
Learn more about the Heaford WW 2CS range, including mounting accuracy, configurations, proofing capabilities and optional workflow enhancements.
What is the WW 2CS range designed for?
The WW 2CS range has been developed for corrugated pre-print mounting applications requiring fast, accurate and repeatable plate mounting performance.
Is the system available for both sleeve and cylinder applications?
Yes. The WW 2CS range is available for both sleeve and cylinder mounting configurations, providing flexibility across different corrugated production environments.
Are proofing versions available?
Yes. Proofing versions of the WW 2CS range are available upon request for converters requiring additional plate verification and workflow control capabilities.
What web widths and repeat ranges are supported?
The system supports web widths of up to 3000mm (118”) and repeat ranges from 500mm (20”) up to 2500mm (98”).
How does the WW 2CS improve mounting accuracy?
The system incorporates servo-motorised cameras and mandrel positioning technology to deliver highly accurate, repeatable plate mounting performance across demanding corrugated pre-print applications.
What optional features are available?
Optional enhancements include barcode scanners, CheckMount systems, support tables, plate and tape cutters, carriage-style tape applicators, QA reporting and TIR sleeve inspection systems.
Upgrade Your Corrugated Pre-Print Workflow
Trusted by corrugated converters across the globe, the Heaford WW 2CS range is engineered to deliver dependable mounting precision, workflow efficiency and repeatable production performance.
