Corrugated Post Print Mounting Systems
Gama PPMT (2CE e 2CS)

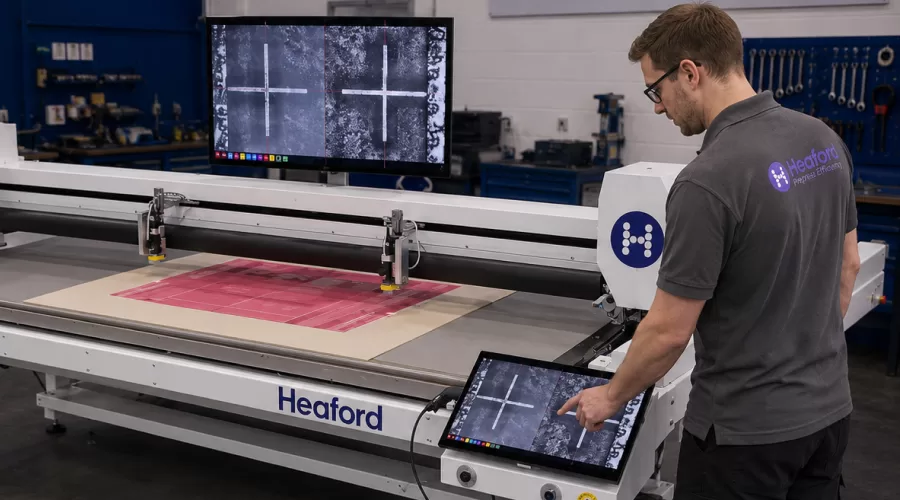

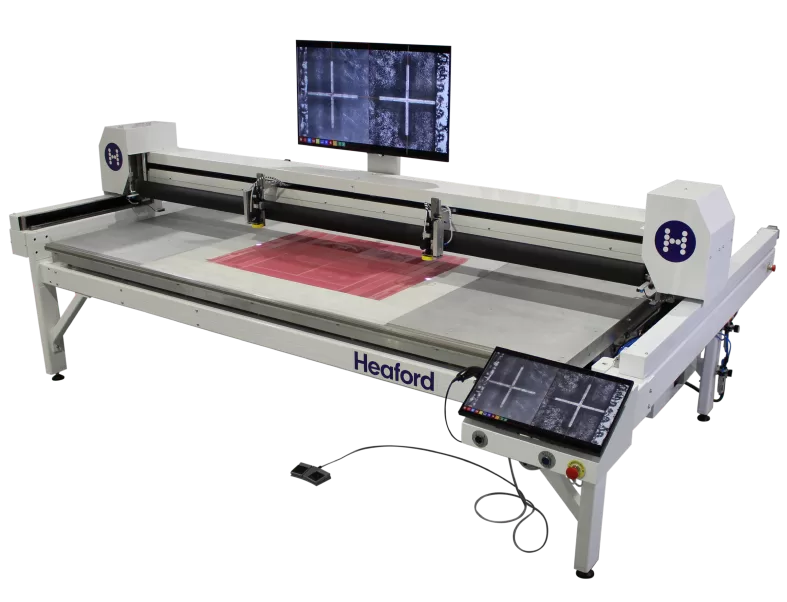

Uma gama de montadores pós-impressão de mesa plana altamente configuráveis e fáceis de usar. Opções manuais e servomotorizadas disponíveis, juntamente com conectividade a sistemas de pré-impressão.
Características;
- Montagem repetível consistente
- Interface de usuário intuitiva
- High magnification
- HD digital fixed focus colour camera system
- Simples e rápido de operar
- Ampla gama de opções
- Conectividade com Esko, Hybrid e outros sistemas de pré-impressão
- Mesa de alumínio maciço com estrutura de suporte fabricada em aço/soldada
- Tamanho da folha de transporte de até 3.600 mm (142”)
- Comprimento do calço de até 1.680 mm (66”)
Advanced Features for Corrugated Post Print Mounting
The Heaford PPMT range combines precision mounting technology, intuitive operation, and highly configurable workflow options to deliver accurate, repeatable corrugated post-print mounting performance across demanding production environments.
Medição da câmera
Para montadores manuais sem câmeras motorizadas, o display LED que mostra dados de posição no eixo X auxilia significativamente na configuração do operador, dispensando a necessidade de uma régua de fita.
Rolo de assentamento
Melhore a eficiência, a consistência e elimine os riscos de bolhas de ar frequentemente associadas ao 'rolamento manual' usando nosso rolo de espuma de silicone. Isto aplica uma pressão uniforme em toda a largura da luva para aplicação de fita e placa.
Código de barras
Configuração mais rápida do trabalho e eliminação de erros do operador na configuração do trabalho com nosso leitor de código de barras e software associado para gerar cartões de trabalho e ler códigos de barras para entrada automática de coordenadas de montagem através da rede da sua empresa.
Verifique a montagem
Ajude os operadores a montar de forma consistente com um sistema de semáforo visual simples com tolerância de montagem definida pelo usuário. Apresentando um sistema de reconhecimento de alvo que funciona em todos os tipos de marcas registradas.
Relatório de Qualidade
Gere automaticamente relatórios de controle de qualidade com imagens de placas montadas por cor, juntamente com dados de posição e variação (posição real x posição programada), armazenados eletronicamente em formato PDF.
Mesa de Vácuo
Um sistema de vácuo para auxiliar na fixação do calço transportador na mesa durante a montagem.
Corrugated Post Print Mounter Features & Specifications
Características
The Heaford PPMT range has been developed to deliver consistent, repeatable corrugated post print mounting performance through a highly configurable and operator-friendly flat table design. Available in both manual and servo-motorised configurations, the system combines intuitive controls with high magnification HD digital camera technology to support accurate mounting and efficient day-to-day production workflows.
Designed for flexibility across modern corrugated prepress environments, the PPMT range offers connectivity to Esko, Hybrid and other leading prepress systems while maintaining a simple and fast operator experience. A robust solid aluminium table with fabricated steel support frame provides exceptional stability and durability for demanding production applications.
Especificações
The Heaford corrugated post print mounting range is available in web widths of 2600mm (102”), 3000mm (118”) and 3600mm (141”), supporting carrier sheet sizes up to 3600mm (142”) and shim lengths up to 1680mm (66”). Designed for precision mounting performance, the system incorporates two 50x magnification digital colour inspection cameras alongside a large 27” touchscreen colour monitor for improved visibility and workflow control.
Advanced positioning technology, including servo-driven ball screw camera beams and servo-driven cameras with positional accuracy tolerances of up to +/- 0.002mm on the 2CS model, enables highly accurate and repeatable mounting performance across corrugated post print applications.
Opções
A range of optional accessories and workflow enhancements is available to further optimise the PPMT range for specific production requirements. These include barcode scanners, laydown rollers, vacuum tables, rear shim tensioners, and CheckMount systems, designed to improve workflow efficiency, mounting accuracy, and operator productivity.
The highly configurable design of the PPMT range allows converters to tailor the system to their individual corrugated post print production environments while maintaining dependable mounting precision and operational flexibility.
Corrugated Post Print Plate Mounting Systems
Accurate & Repeatable Corrugated Mounting Performance
The Heaford PPMT range has been developed to simplify corrugated post-print mounting through highly accurate, repeatable, and operator-friendly flat-table mounting technology. Designed for modern corrugated production environments, the system helps converters improve workflow efficiency while maintaining dependable mounting precision across every job.
Available in manual and servo-motorised configurations, the PPMT range combines advanced HD camera systems, intuitive controls and flexible workflow integration to support consistent production performance. Connectivity to leading prepress systems and a wide range of configurable options allow converters to tailor the system to their operational requirements.
PPMT FAQ’s
Learn more about the Heaford PPMT range, including configurations, mounting accuracy, workflow integration and optional features.
What is the PPMT range designed for?
The PPMT range has been developed for corrugated post print plate mounting applications requiring accurate, repeatable and operator-friendly flat table mounting performance.
Are both manual and automated models available?
Yes. The PPMT range is available in both manual and servo-motorised configurations to support different workflow requirements and production environments.
What prepress systems can the PPMT range integrate with?
The system offers connectivity to Esko, Hybrid and other leading prepress systems, helping converters streamline workflow efficiency and improve production consistency.
What mounting accuracy features are included?
The PPMT range incorporates two 50x magnification digital colour inspection cameras, servo-driven camera positioning and high positional accuracy tolerances of up to +/- 0.002mm on the 2CS model.
What web widths are available?
The system is available in web widths of 2600mm (102”), 3000mm (118”) and 3600mm (141”), supporting a wide range of corrugated production requirements.
What optional features are available?
Optional enhancements include barcode scanners, laydown rollers, vacuum tables, rear shim tensioners and CheckMount systems designed to improve workflow efficiency and mounting accuracy.
