Schneiden
Schützen Sie Ihre Hüllen und Ihre Bediener, während Sie mit unserem Sortiment an Schneidsystemen saubere Schnitte/Verbindungen an Ihren Flexoplatten und Ihrem Klebeband erzielen.

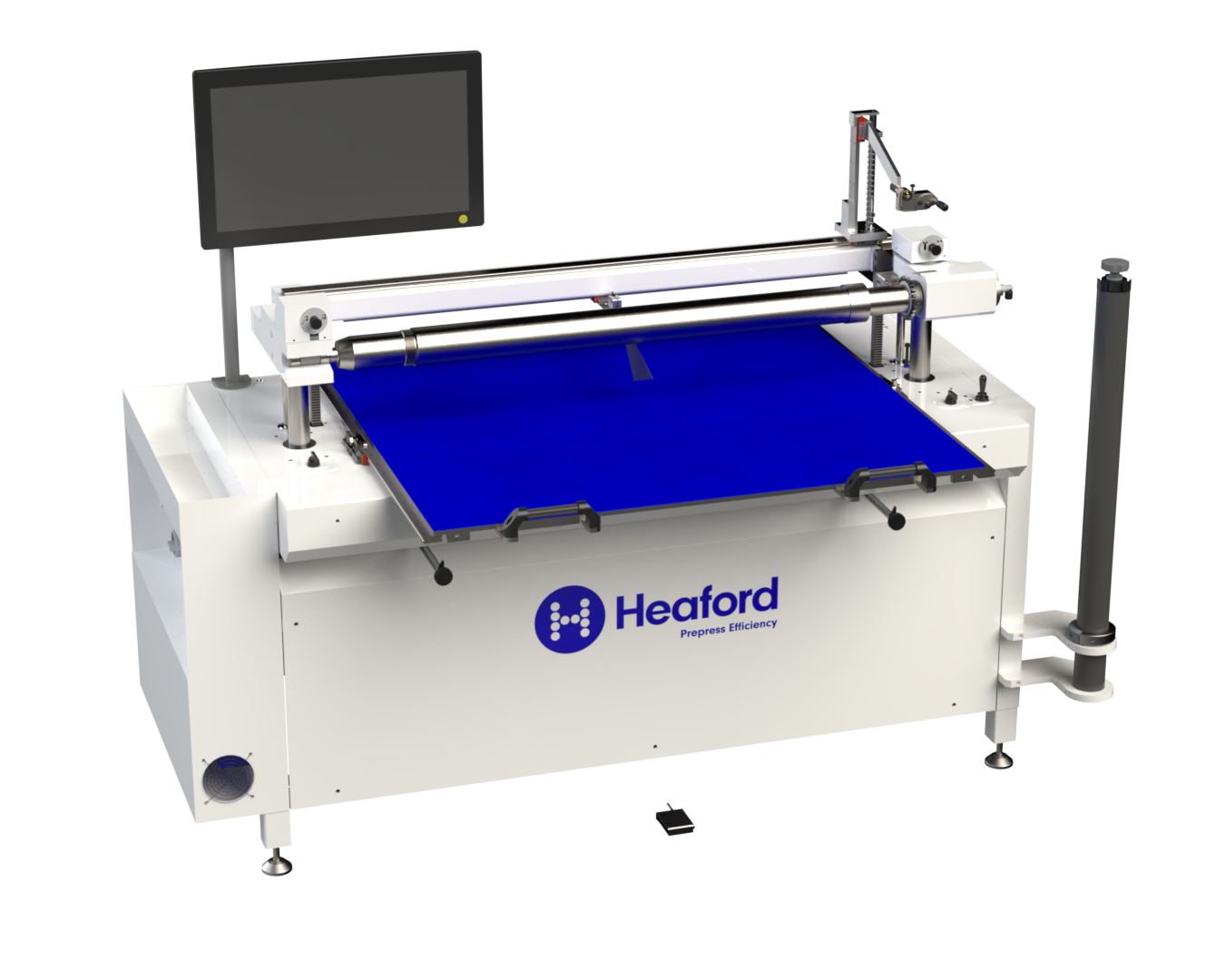

Mid-Web Manual Flexo Plate Mounter
FTS 1100 Range
Medium Web-Konverter können jetzt die gleiche Geschwindigkeit, Genauigkeit und Einfachheit der preisgekrönten FTS-Reihe genießen, die den Maßstab für globale Etiketten- und Umschlagkonverter gesetzt hat.
Merkmale;
- Schnellster Bestücker der Branche
- Benutzerfreundlich und einfach zu bedienen
- Bietet stets eine hohe Montagegenauigkeit
- Schnelle Lernkurve mit minimalem Schulungsaufwand
- Bietet einen schnellen Return on Investment (ROI)
- Speziell entwickelt, um Plattenschäden zu vermeiden
- Vielseitige Konfiguration zur Unterbringung mehrerer Pressen auf einem einzigen Montagegerät
- Passend für alle Hülsentypen
- Unterstützt Bahnbreiten bis zu 1100 mm (43 Zoll)
- Deckt Wiederholungen von 300 mm (11,8 Zoll) bis 1068 mm (42 Zoll) ab.
- Verfügbar in Versionen mit manueller Kamera und automatischer Kamera
FTS 1100 Range Features
Engineered for demanding mid-web applications, the FTS 1100 delivers fast, accurate and operator-friendly plate mounting performance. Advanced mounting technology, intuitive controls and high-precision camera systems enable consistent results across a wide range of production requirements.
Tape Appliciation
Apply tape faster, more precisely and more consistently with our range of operator friendly tape holders and applicators.
Pre Register
Press manufacturers are working tirelessly to reduce start up waste through accurate pre-setting. We have a range of solutions to match your mounter to your press pre-setting system.
Kameramessung
Bei manuellen Montagegeräten ohne motorisierte Kameras erleichtert die LED-Anzeige der Positionsdaten in der X-Achse die Einrichtung durch den Bediener erheblich, sodass kein Maßband erforderlich ist.
Motorised Camera
Significantly reduce job set up and repeatability when mounting multiple plates. Plate positions can be input, taught, or imported. Recall or edit jobs quickly from the database of stored jobs.
Barcode
Schnellere Auftragseinrichtung und Eliminierung von Bedienerfehlern bei der Auftragseinrichtung mit unserem Barcode-Scanner und der zugehörigen Software zum Generieren von Auftragskarten und Lesen von Barcodes für die automatische Eingabe von Montagekoordinaten über Ihr Firmennetzwerk.
Semi-Auto Mid-Web Mounter
Merkmale
The FTS 1100 delivers exceptional mounting accuracy through an intuitive, operator-friendly system that requires minimal training and is extremely simple to operate. Designed to streamline prepress workflows and improve production efficiency, the system enables converters to achieve fast, repeatable mounting performance while benefiting from a rapid return on investment.
Spezifikationen
The FTS 1100 is available in both cylinder and sleeve-dedicated configurations, with web width options of 500mm (19.6”), 700mm (27.5”) and 900mm (35.4”). The system supports repeat ranges from 155mm (6”) up to 610mm (24”) or 876mm (34.4”), providing flexibility across a wide range of mid-web flexographic printing applications.
Designed for precision and ease of operation, the FTS 1100 features a 21.5” touchscreen colour monitor, centre laser plate alignment and toolless quick-change adaptors to streamline setup and improve workflow efficiency. Two 50x magnification digital HD colour cameras deliver exceptional visibility and highly accurate plate positioning for consistent, repeatable mounting performance.
Optionen
A range of optional accessories and workflow enhancements is available to further optimise the FTS 1100 for specific production requirements. These include rear or pivoting-arm tape-roll application units, tape-and-plate cutting systems, pre-register alignment systems, and advanced camera measurement functionality.
Additional options, such as motorised camera control and a sleeve exchange unit — allowing mounting sleeves to be used within a cylinder mounter — provide increased operational flexibility, improved workflow efficiency, and enhanced mounting performance across demanding mid-web applications.

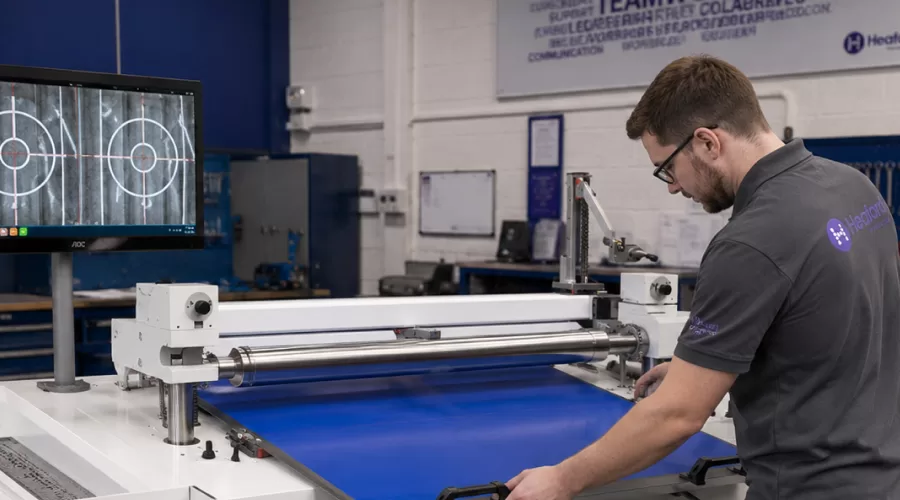

Mid Web Flexo Plate Mounting Systems
Precision Mounting Performance for Modern Mid-Web Production
The Heaford FTS 1100 has been developed to deliver fast, accurate and repeatable plate mounting performance across demanding mid-web flexographic production environments. Combining proven Heaford technology with operator-friendly controls, the system helps converters improve efficiency while maintaining exceptional mounting precision.
Designed for simplicity, flexibility and workflow productivity, the FTS 1100 supports a wide range of mounting configurations and production requirements. Advanced camera systems, laser alignment and intuitive operation enable consistent results with minimal operator training and reduced setup times.
FTS 1100 FAQ’s
Learn more about the FTS 1100, including mounting accuracy, configurations, applications and optional workflow enhancements.
What applications is the FTS 1100 suitable for?
The FTS 1100 has been developed for mid web flexographic printing applications where fast, accurate and repeatable plate mounting is essential for efficient production workflows.
Is the FTS 1100 available in both cylinder and sleeve configurations?
Yes. The FTS 1100 is available in both cylinder and sleeve-dedicated models, providing flexibility for different production requirements and mounting preferences.
How easy is the FTS 1100 to operate?
The system has been designed to be extremely simple to operate and requires minimal operator training. Intuitive controls and workflow-focused features help users achieve consistent mounting accuracy quickly and efficiently.
What mounting accuracy features are included?
The FTS 1100 includes centre laser plate alignment, two 50x magnification digital HD colour cameras and toolless quick-change adaptors to support highly accurate and repeatable mounting performance.
What web widths and repeat ranges are supported?
The system is available in web widths of 500mm (19.6”), 700mm (27.5”) and 900mm (35.4”), with repeat ranges from 155mm (6”) up to 610mm (24”) or 876mm (34.4”).
What optional accessories are available?
Optional enhancements include tape roll application units, tape and plate cutting systems, pre-register alignment systems, camera measurement functionality, motorised camera controls and sleeve exchange units.
Upgrade Your Mid-Web Mounting Workflow
Trusted by converters across the globe, the Heaford FTS 1100 is designed to deliver exceptional mounting precision, workflow efficiency and dependable production performance.
Speak With Our Team Today
et in touch with our experienced team to discuss your production requirements, request a demonstration or learn more about the FTS 1100.
