Kameramessung
Bei manuellen Montagegeräten ohne motorisierte Kameras erleichtert die LED-Anzeige der Positionsdaten in der X-Achse die Einrichtung durch den Bediener erheblich, sodass kein Maßband erforderlich ist.
Manual Flexographic Plate Mounting Systems

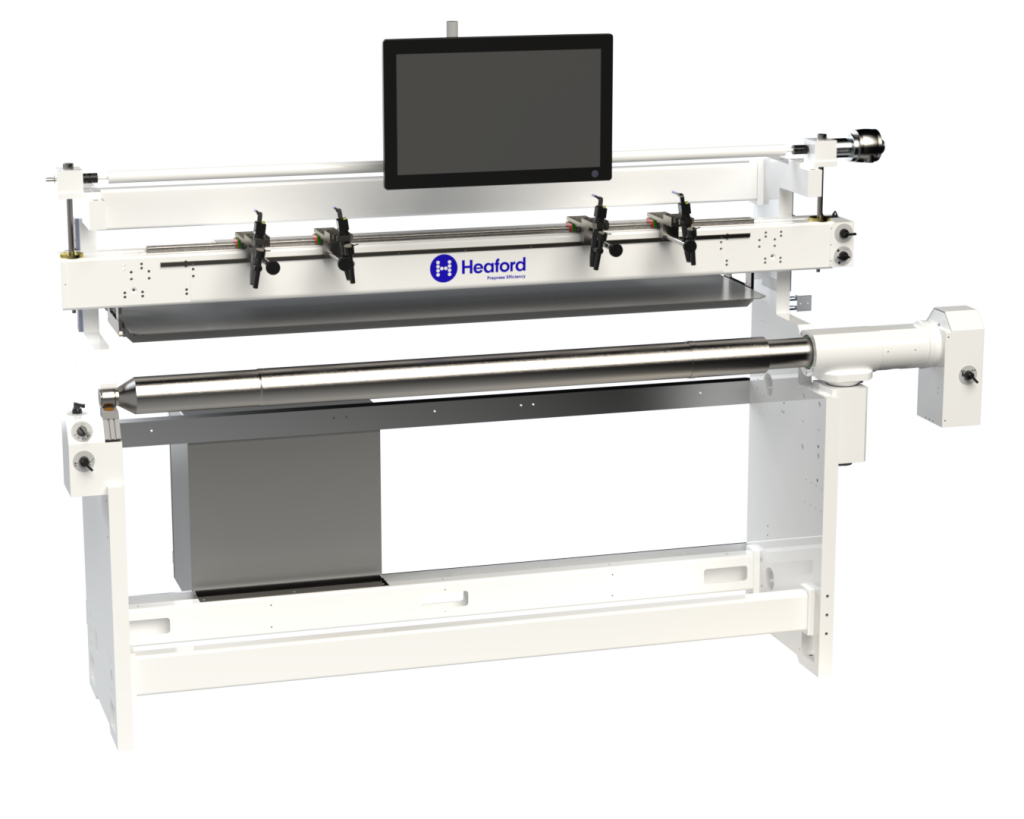

(MM1) ModularMount – Manual
Entwickelt, damit der Mounter mit Ihrem Unternehmen wachsen kann
Merkmale;
- Mehrkamera-Version
- Manuelle Kameras
- Digitalkameras mit 100-facher Vergrößerung
- LED-Beleuchtung zur schnellen Plattenpositionierung
- 27-Zoll-HD-Touchscreen-Monitor
- Auflagetisch für die hintere Platte
- Mechanisches Indexierungssystem
- Umlaufende Positionierungs-Indexier-/Arretierscheibe
- Mehrere Optionen verfügbar
Future-Ready Features for Manual Flexo Mounting

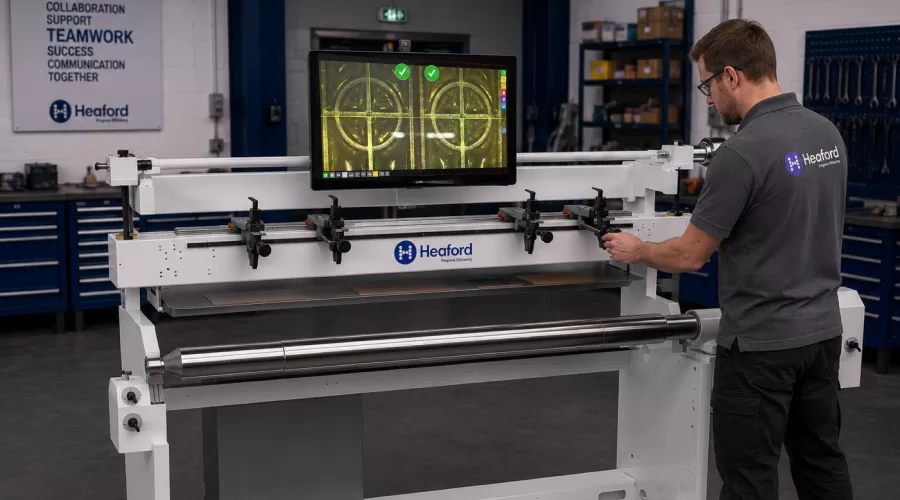

The Heaford MM1 ModularMount combines intuitive manual operation with advanced digital mounting technology, providing a flexible, upgradeable platform that evolves alongside your business.
Überprüfen Sie die Halterung
Helfen Sie Bedienern bei der konsistenten Montage mit einem einfachen visuellen Ampelsystem mit benutzerdefinierten Montagetoleranzen. Ausgestattet mit einem Zielerkennungssystem, das bei allen Arten von Passmarken funktioniert.
Schneiden
Schützen Sie Ihre Hüllen und Ihre Bediener, während Sie mit unserem Sortiment an Schneidsystemen saubere Schnitte/Verbindungen an Ihren Flexoplatten und Ihrem Klebeband erzielen.
Qualitätsbericht
Erstellen Sie automatisch QA-Berichte mit Bildern montierter Platten nach Farbe sowie Positionsdaten und Abweichungen (tatsächliche Position vs. programmierte Position), elektronisch gespeichert im PDF-Format.
Tape Appliciation
Apply tape faster, more precisely and more consistently with our range of operator friendly tape holders and applicators.
MM1 Manual ModularMount Features & Specifications
Merkmale
The Heaford MM1 Manual ModularMount has been developed to provide accurate, operator-friendly flexographic plate mounting within a future-ready modular platform. Designed to support growing businesses, the MM1 enables converters to begin with a manual mounting system while retaining the ability to upgrade automation and functionality over time without replacing the entire machine.
Built around Heaford’s advanced digital imaging technology and intuitive workflow design, the MM1 delivers repeatable mounting accuracy, simplified operation, and reduced operator fatigue. High-magnification digital cameras, LED illumination, and ergonomic controls help operators achieve fast, dependable mounting performance across a wide range of flexographic applications.
Spezifikationen
The MM1 ModularMount features a multi-camera configuration with manual camera positioning, along with advanced 100x-magnification digital camera technology for highly accurate register visibility. LED illumination supports rapid plate positioning while a large 27” HD touchscreen monitor provides clear workflow control and operational simplicity.
The system also features a rear plate support table, a mechanical indexing system, and a circumferential positioning indexing and locking disc to support precise, repeatable mounting performance within manual flexographic workflows.
Vorteile
The modular design of the MM1 allows converters to future-proof their investment by upgrading automation and functionality as operational requirements evolve. This scalable approach helps reduce long-term equipment replacement costs while maintaining operator familiarity with the workflow.
Designed with sustainability, reliability and long-term value in mind, the MM1 combines proven Heaford engineering with robust industrial components to deliver dependable mounting performance and extended machine lifespan across demanding production environments.
Modular Flexographic Mounting Systems
Start Manual. Upgrade When Your Business Is Ready.
The Heaford MM1 Manual ModularMount has been designed to provide accurate, reliable and operator-friendly flexographic plate mounting within a scalable modular platform. Ideal for converters seeking long-term flexibility, the MM1 allows businesses to start with manual operation while retaining the ability to upgrade automation and functionality in the future.
Combining advanced digital imaging technology, intuitive controls and robust engineering, the MM1 delivers dependable mounting accuracy while supporting sustainable investment and long-term operational efficiency across modern flexographic prepress environments.
Manual ModularMount FAQ’s
Learn more about the Heaford MM1 Manual ModularMount, including upgradeability, mounting accuracy and operational flexibility.
What is the MM1 ModularMount designed for?
The MM1 ModularMount has been developed for converters requiring accurate manual flexographic plate mounting within a scalable system that can be upgraded as business requirements evolve.
Can the MM1 be upgraded in the future?
Yes. The ModularMount platform has been specifically designed to support future upgrades, allowing businesses to increase automation and functionality without replacing the entire system.
How does the MM1 improve mounting accuracy?
The system incorporates 100x magnification digital cameras, LED illumination and advanced positioning systems to provide highly accurate register visibility and repeatable mounting performance.
Is the MM1 easy to operate?
Yes. The MM1 has been developed alongside prepress operators to ensure an intuitive, ergonomic and operator-friendly workflow with simplified controls and reduced operator fatigue.
What mounting technologies are included?
The system features manual camera positioning, multi-camera functionality, mechanical indexing systems and circumferential positioning indexing and locking technology for accurate plate alignment.
Why choose a modular mounting system?
A modular mounting system allows converters to future-proof their investment by upgrading functionality over time, reducing replacement costs and supporting long-term operational flexibility.
Build a Future-Ready Flexographic Workflow
Take control of your flexographic mounting workflow with scalable modular mounting technology trusted by converters worldwide. Our team is ready to help you improve mounting accuracy, workflow efficiency and long-term operational flexibility.
Book a Demo
Get in touch with our experienced team to request a demonstration or learn more about our ModularMount system.
