Kameramessung
Bei manuellen Montagegeräten ohne motorisierte Kameras erleichtert die LED-Anzeige der Positionsdaten in der X-Achse die Einrichtung durch den Bediener erheblich, sodass kein Maßband erforderlich ist.
Flexo Proof Press Systems

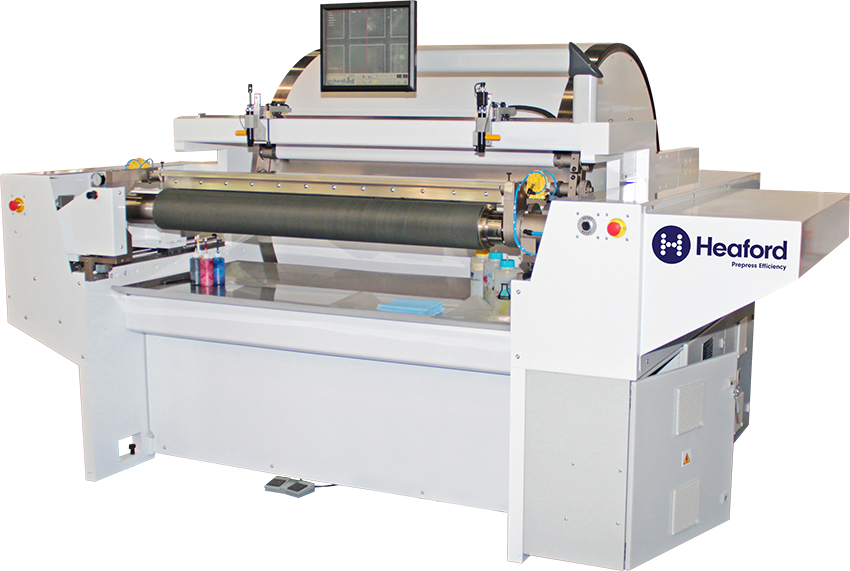

SDF Flexo Proof Press
Eliminiert die Notwendigkeit von Pressegenehmigungen. Erstellt echte Produktionsproofs mit den gleichen Substraten, Tinten, Hülsen, Platten und Rasterwalzen wie Ihre Druckmaschine. Ermöglicht Ihrer Druckmaschine, sich auf die umsatzgenerierende Produktionsarbeit zu konzentrieren. Die Probedrucke sind vergleichbar mit Produktionsmustern und Prototypentwürfen außerhalb der Druckmaschine.
Merkmale;
- Verwendet Produktionssubstrate, Sleeves, Produktionsplatten, Rasterwalzen und Tinten
- Der Proof kann analysiert werden, um Dichte und Tonwertzunahme genau zu messen
- Fähigkeit zum Proofen innerhalb von 95% des Produktionsproofs
- Kompatibel mit Lösungsmittel-, Wasser- oder UV-Tinten, einschließlich PMS-Tinten
- Variable Proofgeschwindigkeiten
- Präzise Einstellung und Messung der Abdrücke
- Steuerung der Anilox-zu-Platte- und Platte-zu-Substrat-Drücke
- Also available for the narrow web cylinder version
- Bahnbreiten bis zu 1750 mm (69 Zoll)
- Prüflänge bis zu 5000 mm (197 Zoll)
Proof Press Range Features
Designed to produce highly accurate production proofs off-press, the Heaford flexo proof press range helps converters improve approval workflows while keeping production presses focused on revenue-generating print runs.
Motorised Camera
Significantly reduce job set up and repeatability when mounting multiple plates. Plate positions can be input, taught, or imported. Recall or edit jobs quickly from the database of stored jobs.
Ablegewalze
Verbessern Sie die Effizienz und Konsistenz und beseitigen Sie das Risiko von Luftblasen, die oft mit dem „Rollen von Hand“ einhergehen, indem Sie unseren Silikonschaum-Auflegeroller verwenden. Dadurch wird ein gleichmäßiger Druck über die gesamte Breite der Hülse ausgeübt, sowohl für die Band- als auch für die Plattenanwendung.
Flexo Proof Press Features & Specifications
Merkmale
The Heaford flexo proof press range eliminates the need for on-press approvals by producing highly accurate production proofs using the same substrates, inks, sleeves, plates and anilox rollers as the production press itself. This enables converters to keep flexographic presses focused on revenue-generating production work while achieving proofs that closely replicate final production results and prototype designs off-press. Compatible with solvent, water and UV inks — including PMS inks — the system delivers flexible, dependable proofing performance across a wide range of flexographic applications.
Spezifikationen
The Heaford flexo proof press range is available in widths of 800mm, 1300mm, 1600mm and 1750mm, supporting a wide variety of flexographic proofing applications and production requirements. The system accommodates drum diameters up to 3500mm and sleeve diameters up to 1000mm, providing flexibility across different press configurations and substrates.
Designed for precise control and ease of operation, the proof press incorporates a PLC and HMI touchscreen control system alongside a large 27” touchscreen monitor, enabling operators to manage proofing workflows efficiently while maintaining accurate and consistent proofing performance.
Optionen
Optional enhancements are available to further optimise the Heaford flexo proof press range for efficient workflow management and production control. These include ink suction systems for cleaner operation and barcode scanners to support improved job tracking, setup accuracy and workflow efficiency.
Flexographic Proofing Systems
Accurate Production Proofs Without Press Downtime

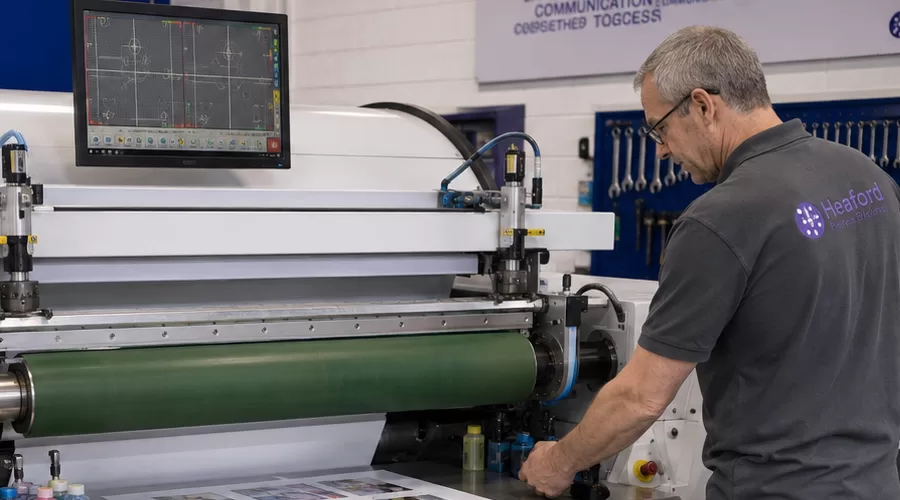

The Heaford flexo proof press range has been developed to help converters produce highly accurate production proofs without interrupting live press operations. Using the same substrates, inks, sleeves, plates and anilox rollers as the production press, the system delivers proofs that closely replicate final production results.
Designed to improve workflow efficiency and reduce reliance on on-press approvals, the flexo proof press enables converters to keep production presses focused on revenue-generating work while maintaining consistent proofing accuracy across a wide range of flexographic applications.
Flexo Proof Press FAQ’s
Learn more about the Heaford flexo proof press range, including proofing capabilities, supported inks, configurations and workflow benefits.
What is a flexo proof press used for?
A flexo proof press is used to produce highly accurate production proofs off-press before live print runs begin. This allows converters to verify print quality, colour and registration without interrupting production press operations.
Can the proof press replicate real production conditions?
Yes. The system uses the same substrates, inks, sleeves, plates and anilox rollers as the production press, enabling proofs that closely replicate final production results.
What types of inks are supported?
The Heaford flexo proof press range is compatible with solvent, water and UV inks, including PMS inks.
How does the flexo proof press improve production efficiency?
By eliminating the need for on-press approvals, the system allows production presses to remain focused on revenue-generating work while proofing and approval processes are completed off-press.
What widths are available?
The proof press range is available in widths of 800mm, 1300mm, 1600mm and 1750mm to support a variety of flexographic applications and production environments.
What optional features are available?
Optional enhancements include ink suction systems and barcode scanners designed to improve workflow control, setup accuracy and operational efficiency.
Improve Your Flexographic Proofing Workflow
Trusted by flexographic printers across the globe, Heaford proof press systems are designed to deliver dependable proofing accuracy, operational efficiency and production confidence.
